Garrett GT2260S PowerMax MQB Turbo Kit - VW Golf GTI/R MK7/7.5 & AUDI S3 8V/8.5V

Garrett PowerMax™ turbochargers have been engineered to increase engine performance while maintaining OEM installation specifications. These turbochargers come fully assembled with a calibrated electronic actuator and ancillary components for direct OEM fitment.

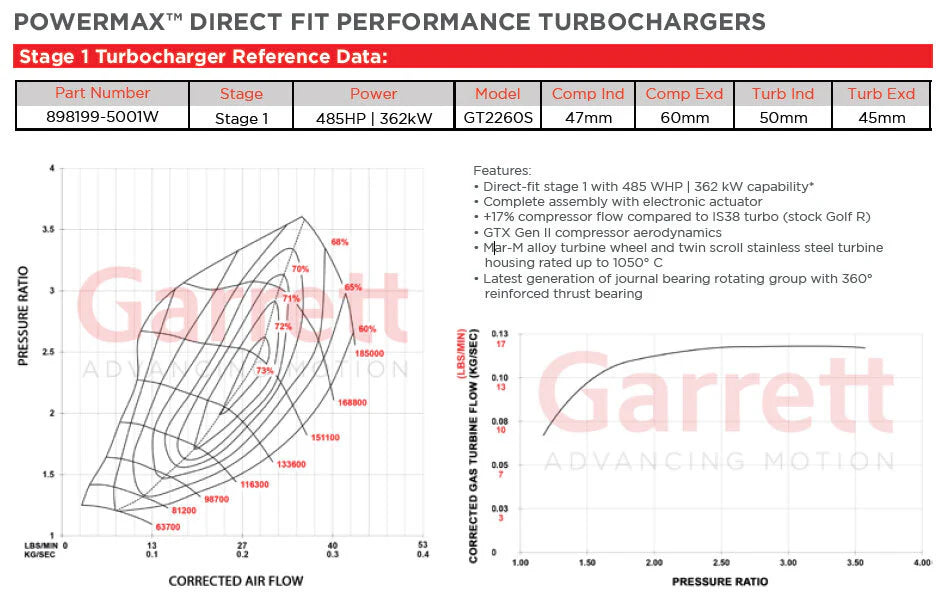

Stage 1 (485F WHP*) and Stage 2 (600 FWHP*) upgrades maximise efficiency and air flow compared to the OEM turbocharger. High temperature, Mar-M alloy turbine wheel and twin scroll stainless steel turbine housings are rated for up to 1050° C.

Excellent upgrade for IS20 Turbo equipped MQB Tiguan, MK7 MK7.5 GTI due to the OEM like power delivery. Great alternative to OEM IS38, as IS38 in good condition can be difficult to source.

• Garrett GT2260S Bolt on Turbo upgrade kit
• MQB Platform Stage 2+ Modification
• Direct-fit Stage 1 Garrett Upgrade
• 17% flow increase over IS38 (stock Golf R turbo)
• 485HP/362kW (flywheel) power capability (on-vehicle results)
• 47mm compressor inducer, 60mm compressor exducer
• 50mm turbine inducer, 45mm compressor exducer
• Complete assembly with calibrated electric actuator and ancillary components for OE fitment

Kit Contents:

• 1x Garrett GT2260S Turbocharger
• 1x Inlet Elbow
• Complete water and oil fitting kit
• Gasket Kit

OEM Turbocharger Applications

• IS12 06K124713L
• IS20 06K145875M
• IS38 06K145722H

WARNING:

Maximum allowable turbocharger speed is 185krpm (Stage 1) and 165krpm (Stage 2). The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor port is machined into the compressor housing for the fitment of speed sensor part numbers G781328-0003 (includes sensor and gauge), and G781328-0004 (includes speed sensor). Speed sensors sold separately.
